New Fields

  • For high functionality, we are developing nano materials for electrode materials, rubber/resin combined materials, etc.
  • Based on the Carbon Nano Tube compounded by our company, we offer dispersed fluids/wet master batch/yarn/non-woven fabrics.
  • Leveraging the differing materials joining technology cultivate for one of our main products, Cylinder Liners, we are developing various cast-in products.

Carbon Nano Tube

The TPR-made Carbon Nano Tube has long length, and is a Carbon Nano Tube that has been controlled to a few layers.

The manufacturing method is highly-efficient growing of the Carbon Nano Tube perpendicularly from a large-surface area base board, and TPR has established mass-production technology.

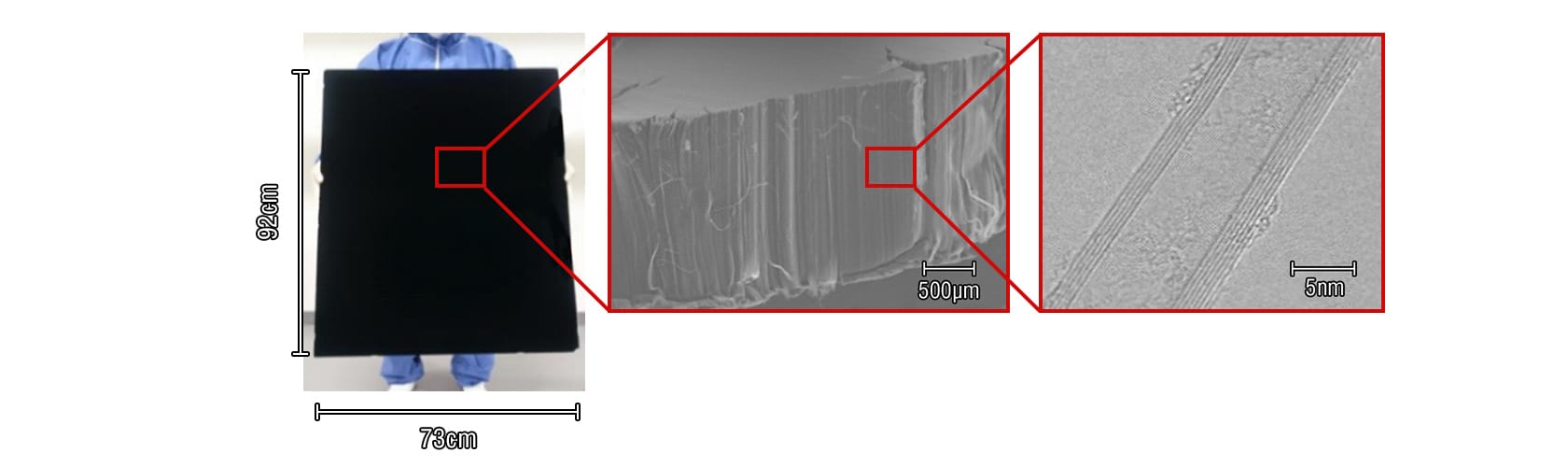

Large surface area base board and Carbon Nano Tube microscope photograph

Large surface area base board and Carbon Nano Tube microscope photograph

List of Carbon Nano Tube properties

Scroll sideways

Item CNT length CNT diameter Specific surface area Number of layers Metal impurities G/D ratio *
Representative value Up to 2mm 5 to 12mm 225~390m2/g and up 3 to 7 layers Up to250ppm 0.8 and up
  • G/D ratio can be set to match the customer's request

Application

Scroll sideways

Characteristics Aim for the material Our joy when an application is identified
Long
  • Physically networked form, with few connections.
  • High purity (few metal impurities)
  • Low resistance/high strength
  • High durability
Few layers (light)
  • Function can be vested with small amount of additives
  • Just 0.1 weight % additives manifests function

Carbon Nano Tube application technologies are being developed too, and it is possible to support customer product applications.

Base board visual appearance/CNT/Dispersed fluid/CTN combined rubber/CTN non-woven fabric/CTN film/Extractable CNT/CNT yarn

Application technology (example)

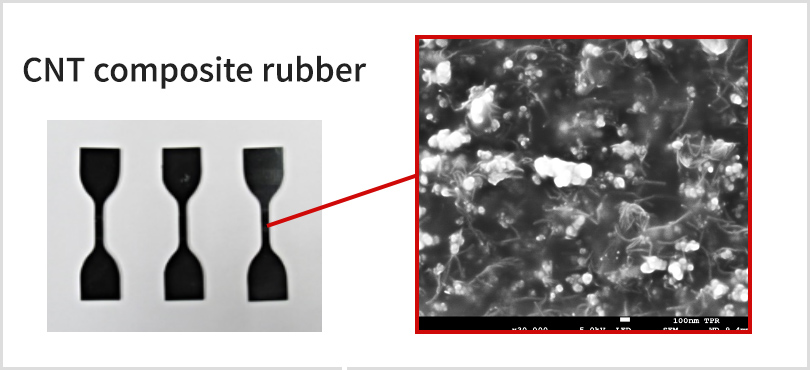

CTN combined rubber

CNT well-dispersed in combined material
Networked state

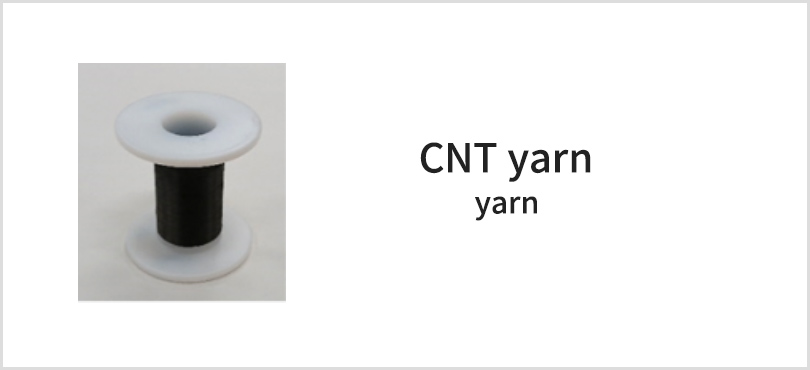

CNT yarn

List of CNT yarn (thread) properties

Item Representative values
Diameter Up to 100μm
Electrical conductivity rate Up to 105 S/m
Tensile shear strength Up to 1.5Gpa
Yarn density Up to 1.2g/cm3

Nano Porous Material

Nano Porous Material is a multi-holed materials with infinite micro holes.

This development is joint research with Tohoku University using "molten metal dealloying method" on Nano Porous Material.

The molten metal dealloying method is to liquate certain elements from multi-component alloys into molten metal, to create the target porous material. The characteristic feature lying in this manufacture method is that is has continuous micro holes from the surface to the interior of the material, an ""open porous structure

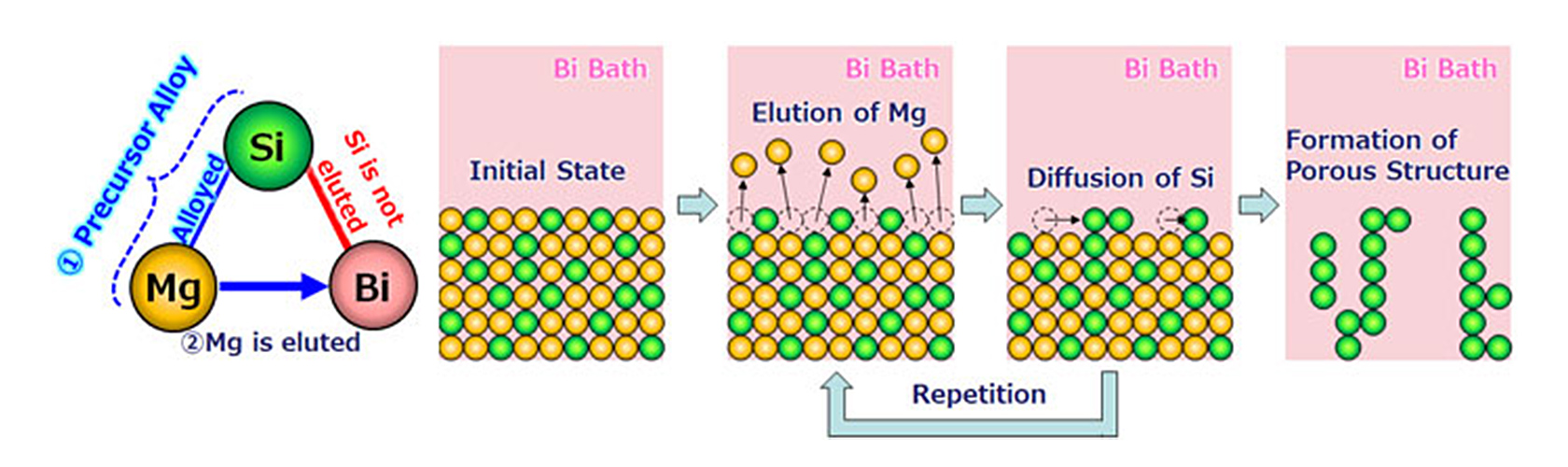

By immersing a Si and Mg allow in molten Bi, the Mg is liquated into the molten Bi, forming the multi-hole Si structure (in the case of Si).

①Precursor alloy/Change to alloy/Si does not melt/②Mg liquates/Bi bath/Initial state/MG liquates/Si spreads/Repeat/Formation of multi-hole structure

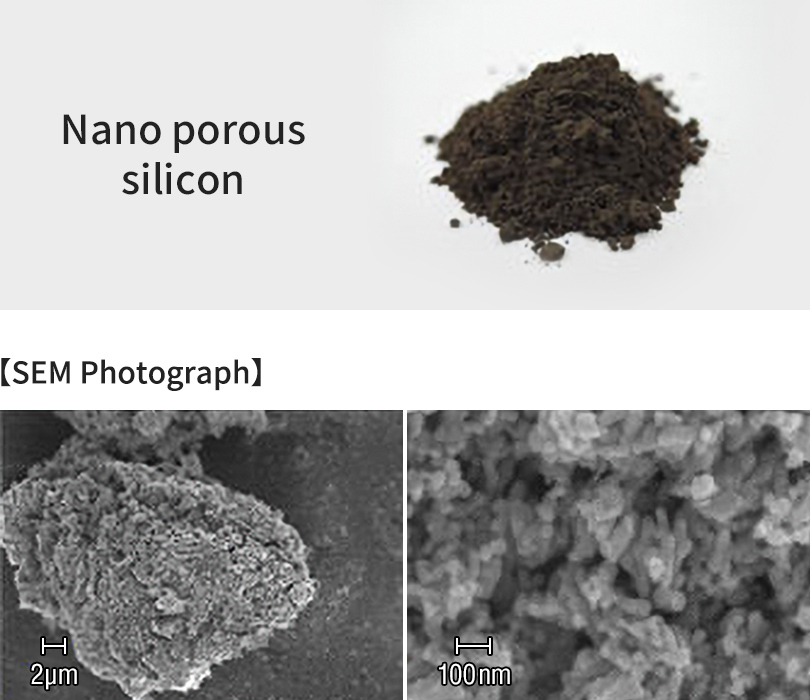

Nano porous silicon

Nano porous silicon

Characteristics

Large specific surface area, high crystallization, high electric conductivity

Scroll sideways

Specifications Specification and specification values
Fine hole size Balance High crystallization
Specific surface area
(m2/g)
60 30 10
Fine hole peak diameter
(nm)
30 80 400
Particle diameter, D50
(μm)
100
Crystallizer size(nm) 20 50 80
  • The fine hole size and particle diameter can be controlled as requested.
  • The data posted here are reference values and not guaranteed values.

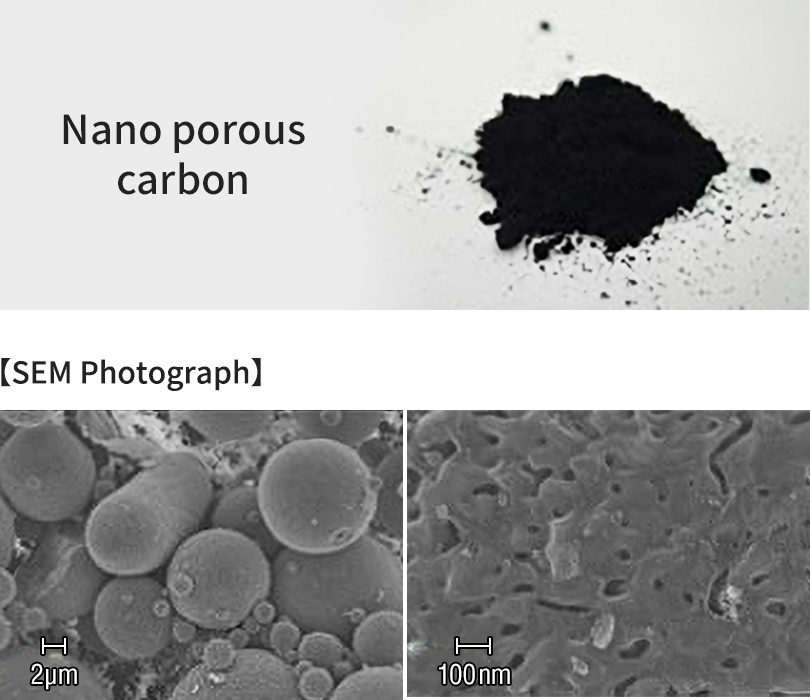

Nano porous carbon

SEM photograph

Characteristics

Large specific surface area, high crystallization, high electric conductivity, low moisture absorption

Scroll sideways

Specifications Specification and specification values
Large specific surface area High crystallization
Specific surface area
(m2/g)
400 100
Particle diameter, D50
(μm)
20
Crystallizer size(nm) 3 8
  • The fine hole size and particle diameter can be controlled as requested.
  • The data posted here are reference values and not guaranteed values.

【Examples of Application Study】

Filter
Catalyst Carrier
Micro Sensor
Sustained Release Material
Adsorbent
